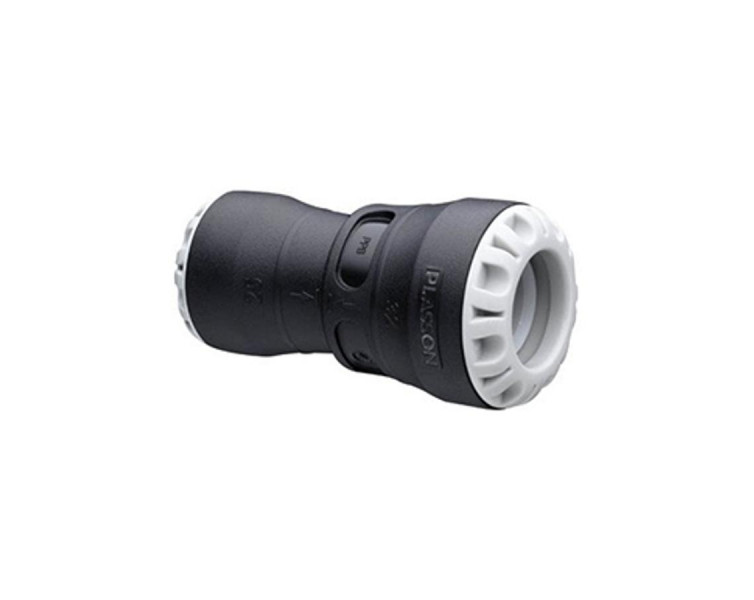

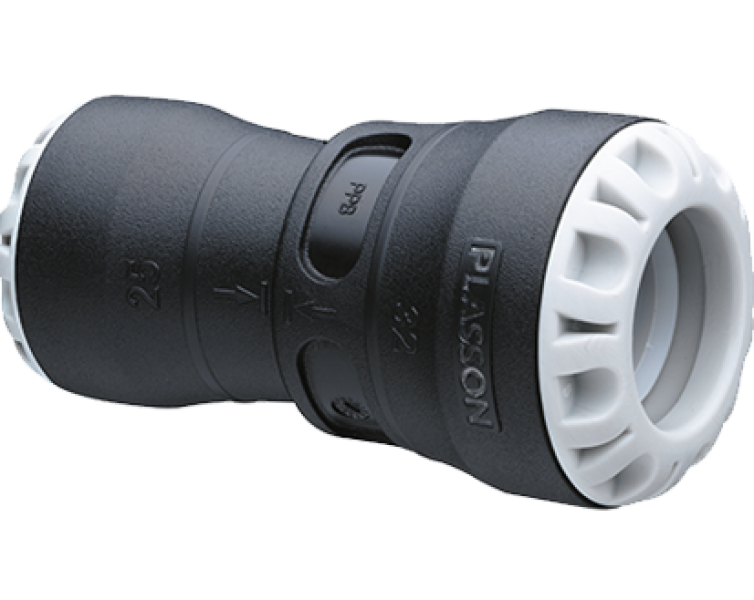

Plasson Series 1 Reducing Coupler F&F

Code: 3523

Facilitates size reduction from one or more PE pipe OD’s within the range 63mm – 20mm.

  • Pressure fittings for use in plumbing, rural and civil applications
  • Installation without tooling on PE pipe 20mm – 63mm
  • Compliant with AS/NZS 4129: Fittings for Polyethylene Pipe for Pressure Applications
  • PN16 rated

Plasson Series 1 pushfit fittings are made from polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

ENQUIRE NOW
Product Image Product Code Size Length Pressure Joint Type Qty Colour
3523.25.20 3523.25.20 25mm x 20mm - - - 250 / 5 Black Enquire
3523.25.20 3523.32.20 32mm x 20mm - - - 200 / 5 Black Enquire
3523.25.20 3523.32.25 32mm x 25mm - - - 200 / 5 Black Enquire
3523.25.20 3523.40.32 40mm x 32mm - - - 100 / 1 Black Enquire
3523.25.20 3523.50.25 50mm x 25mm - - - 80 / 1 Black Enquire
3523.25.20 3523.63.50 63mm x 50mm - - - 35 / 1 Black Enquire
Product code

3523.25.20

Nominal OD (mm)

Size (mm)

25mm x 20mm

Coupling

Qty

250 / 5

Colour

Black

  Enquire
Product code

3523.32.20

Nominal OD (mm)

Size (mm)

32mm x 20mm

Coupling

Qty

200 / 5

Colour

Black

  Enquire
Product code

3523.32.25

Nominal OD (mm)

Size (mm)

32mm x 25mm

Coupling

Qty

200 / 5

Colour

Black

  Enquire
Product code

3523.40.32

Nominal OD (mm)

Size (mm)

40mm x 32mm

Coupling

Qty

100 / 1

Colour

Black

  Enquire
Product code

3523.50.25

Nominal OD (mm)

Size (mm)

50mm x 25mm

Coupling

Qty

80 / 1

Colour

Black

  Enquire
Product code

3523.63.50

Nominal OD (mm)

Size (mm)

63mm x 50mm

Coupling

Qty

35 / 1

Colour

Black

  Enquire
