Plasson Female Threaded Adaptor F&F

Code: 2506

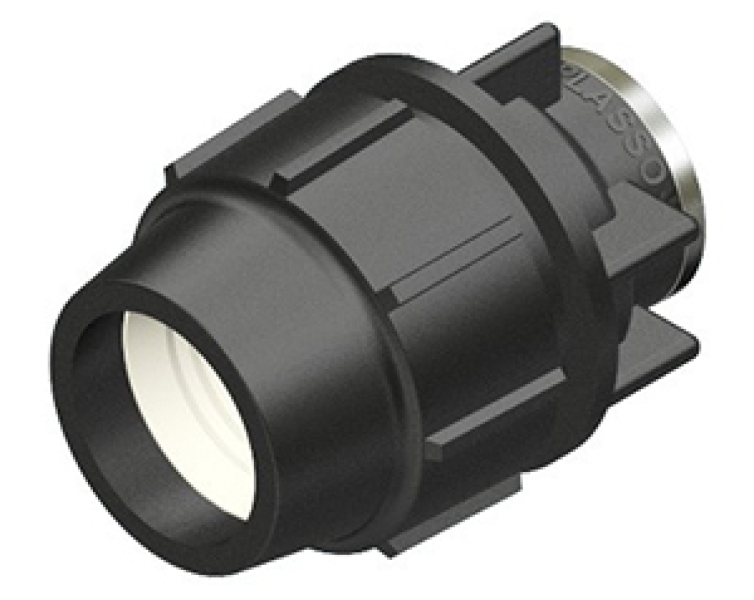

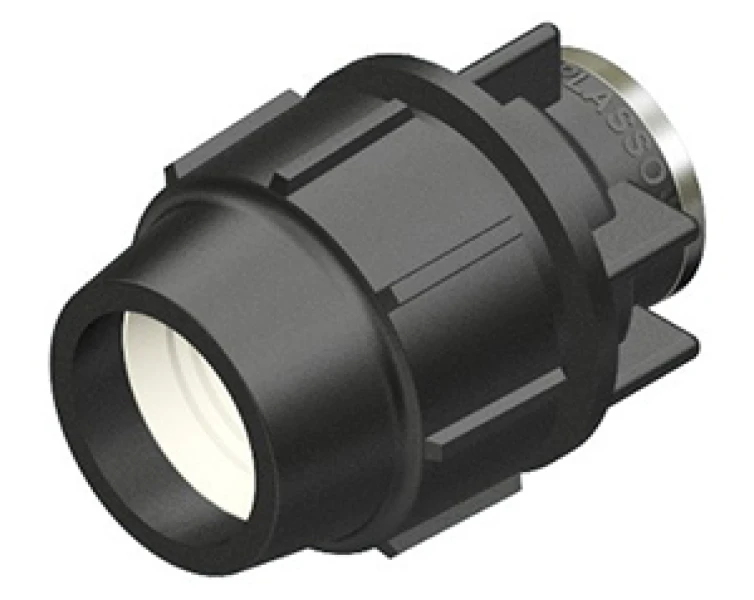

Plasson Female Threaded Adaptor F&F

Connects PE pipe between 20mm OD - 110mm OD PE pipe to ½” - 4” BSP threaded.

Plasson Line 7 mechanical compression fittings are made from polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from Acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with AS/NZS 4129: Fittings for polyethylene pipe for pressure applications
ENQUIRE NOW
Product Image Product Code Size Length Pressure Joint Type Qty Colour
2506.110 2506.20 20mm x ½” 16 350/10 Enquire
2506 v2.110 2506.25 25mm x ¾” 16 250/10 Enquire
2506 v3.110 2605.32 32mm x 1” 16 150/5 Enquire
2506 v4.110 2506.40 40mm x 1¼” 16 110/1 Enquire
2506 v5.110 2506.50 50mm x 1½” 16 70/1 Enquire
2506 v6.110 2506.63 63mm x 2” 16 48/1 Enquire
2506 v7.110 2506.75.65 75mm x 2 ½” 16 28/1 Enquire
2506 v8.110 2506.90 90mm x 3” 16 16/1 Enquire
2506 v9.110 2506.110 110mm x 4” 16 8/1 Enquire
Product code

2506.20

Nominal OD (mm)

Size (mm)

20mm x ½”

Coupling

Qty

350/10

Colour

  Enquire
Product code

2506.25

Nominal OD (mm)

Size (mm)

25mm x ¾”

Coupling

Qty

250/10

Colour

  Enquire
Product code

2605.32

Nominal OD (mm)

Size (mm)

32mm x 1”

Coupling

Qty

150/5

Colour

  Enquire
Product code

2506.40

Nominal OD (mm)

Size (mm)

40mm x 1¼”

Coupling

Qty

110/1

Colour

  Enquire
Product code

2506.50

Nominal OD (mm)

Size (mm)

50mm x 1½”

Coupling

Qty

70/1

Colour

  Enquire
Product code

2506.63

Nominal OD (mm)

Size (mm)

63mm x 2”

Coupling

Qty

48/1

Colour

  Enquire
Product code

2506.75.65

Nominal OD (mm)

Size (mm)

75mm x 2 ½”

Coupling

Qty

28/1

Colour

  Enquire
Product code

2506.90

Nominal OD (mm)

Size (mm)

90mm x 3”

Coupling

Qty

16/1

Colour

  Enquire
Product code

2506.110

Nominal OD (mm)

Size (mm)

110mm x 4”

Coupling

Qty

8/1

Colour

  Enquire
